產品配置 8849 TANK 5 Specifications
認證 Certification Standard
- IP68, IP69K 防水防塵 Waterproof, Dust proof
防水深度 Ingress Protection
- 1.8 米內 (浸泡時間最長 30 分鐘)
- Depth of 1.5m underwater for up to 30 minutes.
_________________________________
基本資料 Basic Information
型號 Model
- 8849 TANK 5
系統 System
- 預載 Android 16
- 長達 5 年安全更新 5 Years of Security Updates
- 支援 OTA 系統升級 Built-in OTA update
顏色 Color
- 灰黑色 Black & Grey
處理器 Processor
- CPU：MediaTek Dimensity 9400e
- 頻率 Frequency：8 Core, up to 3.4GHz
- GPU：Immortalis-G720 MC12
- 製程 Technology：4nm
- 安兔兔跑分 AnTuTu Score：超過 2,300,000
記憶體 + 容量 RAM & ROM
- 18GB LPDDR5X RAM + 512GB UFS 4.0 ROM
- 虛擬記憶體 Virtual RAM：最高擴充 18GB Maximum
- 記憶卡 SD Card：最高支援 2TB Maximum
電池和充電 Battery and Charging
- 電池 Battery：17600mAh
- 支援快速充電 Support 120W Fast Charging
- 支援逆向充電 Support 25W Reverse Charging
_________________________________
屏幕 Display
- 尺寸 Size：6.73吋 Inch
- 面板類型 Type：AMOLED 打孔螢幕 Punch-Hole Display
- 解析度 Resolution：1440 x 3200
- 像素密度 Pixel Density：522 PPI
- 120Hz 刷新率 Refresh Rate
- 峰值亮度 Peak Brightness：3000 nits
- 調光 Dimming：1920Hz PWM + DC
_________________________________
相機 Camera
後置相機 Rear Camera
- 50MP 主鏡頭 Primary - Samsung S5KGN1SP, 1/1.56"
- 50MP 夜視鏡頭 Night Vision - OmniVision OV50D40
- 30Hz 高幀率
- 配備 4 顆 940nm 紅外線補光燈
- 夜視距離最遠 15 米
- 50MP 望遠鏡頭 Telephoto - OmniVision OV50D40
- 最高 20 倍變焦
- 雙色溫 LED 閃光燈 Dual-color temperature Flash LED (1.5A max)
- 影片錄製 Video Recording：最高支援 4K
前置相機 Front Camera
- 32MP 自拍鏡頭 Selfie - OmniVision OV32B40
內置水下拍攝模式 Underwater Photography
- 拍照和錄像 Take photos & video recording
- 開始 / 結束操作 Start/end operation
- 快速切換拍攝模式 Quickly switch shooting modes
_________________________________
連接 Connectivity
- 行動網路 Cellular：5G / 4G / 3G / 2G
- SIM 卡配置 SIM Configuration：
- 雙 Nano SIM
- Nano + microSD
- Nano + eSIM
- eSIM + microSD
- eSIM：支援 Support
- 導航 Navigation：GPS (L1+L5 雙頻), GLONASS, Galileo, Beidou
- 無線網路 WLAN：WiFi 7 (802.11 a/b/g/n/ac/ax)
- 藍芽 Bluetooth：5.4
- NFC：支援 Support
- 紅外線遙控 Infrared Remote：支援 Support
- USB 協議 USB Protocol：USB 3.1 + DP 1.4 Alt Mode
- DP OUT：支援 Support (可連接外部顯示器)
- OTG：支援 Support (逆向充電)
按鍵及接口 Buttons & Ports
- 卡槽 Card Slot：雙 Nano SIM / Nano+microSD / Nano+eSIM / eSIM+microSD
- 充電接口 USB Port：USB Type-C (USB 3.1)
- 耳機插槽 Earphones Jack：3.5mm
- 自定義快捷鍵 Customized Keys：2 個可程式化 PTT 按鍵
- 指紋辨識 Fingerprint：側邊指紋解鎖 Side-mounted Fingerprint Sensor
_________________________________
尺寸 Dimensions
- 尺寸 Size：177.1 x 87 x 33.8 mm
- 重量 Weight：715g
_________________________________
投影機 Projector
- 技術 Technology：DLP
- 解析度 Resolution：2048 x 1080
- 亮度 Brightness：220 流明 Lumens
- 對焦 Focus：雷射自動對焦 Laser Autofocus (0.5 米至 4.0 米)
- 梯形校正 Keystone Correction：4 點 TOF 雷射，±45° 垂直與水平校正
- 續航時間 Runtime：5 小時 (一般模式 Normal) / 6 小時 (夜間模式 Night Mode)
測距功能 Laser Rangefinder
- 測距範圍 Measuring Range：0.5 米至 4 米
- 測量模式 Modes：距離 Distance、面積 Area、體積 Volume、畢氏定理 Pythagorean
喇叭 Speaker
- 揚聲器 Loudspeaker：單揚聲器，3.5cc 音腔，96dB 響度，Smart PA (AWINIC)
- 麥克風 Microphone：雙類比矽麥克風，支援降噪 Dual analog silicon microphone with noise cancellation
- 震動馬達 Vibration Motor：1027 線性馬達 Linear (flat) motor
露營燈 Camping Light
- 1200 流明 Lumens
- 高/中/低三種亮度模式
- SOS 模式
- 閃爍模式 Strobe
紅藍警示燈 Red/Blue Warning Lights
- 附聲音警報 Sound Alert
其他功能 Other Features
- 解鎖方式 Unlock Options
- 側邊指紋解鎖 Side Fingerprint Unlock
- 面部解鎖 Face Unlock
_________________________________
包裝內容 Package Contents
1 x 8849 TANK 5 手機 Phone,
1 x 充電器 Charger (120W),
1 x USB 數據線 USB Cable,
1 x 保護貼 Screen Protector (可能已預貼 Pre-installed),
1 x 保護套 Phone Case,
1 x 用戶指南 User Manual,
1 x 保修卡 Warranty Card
_________________________________
保養 Warranty
- 平行進口產品 Parallel Import
- 七天購物保障 7 Days Guarantee
- 一年門市保養 One Year Warranty
_________________________________
備註 Remarks
- 落單前請先與我們確認庫存 (型號 / 容量 / 顏色)
- Please contact us before placing an order. Thank you.

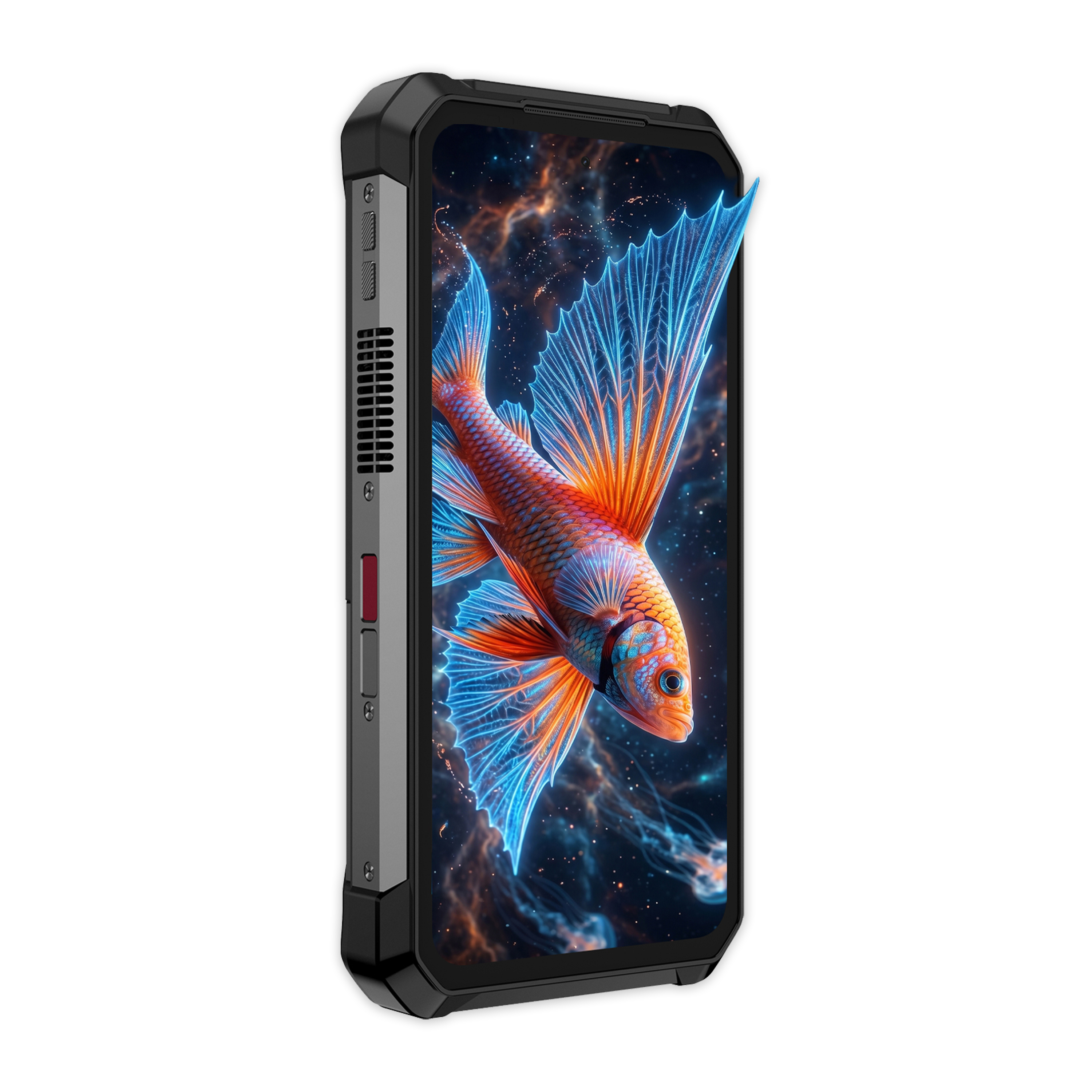

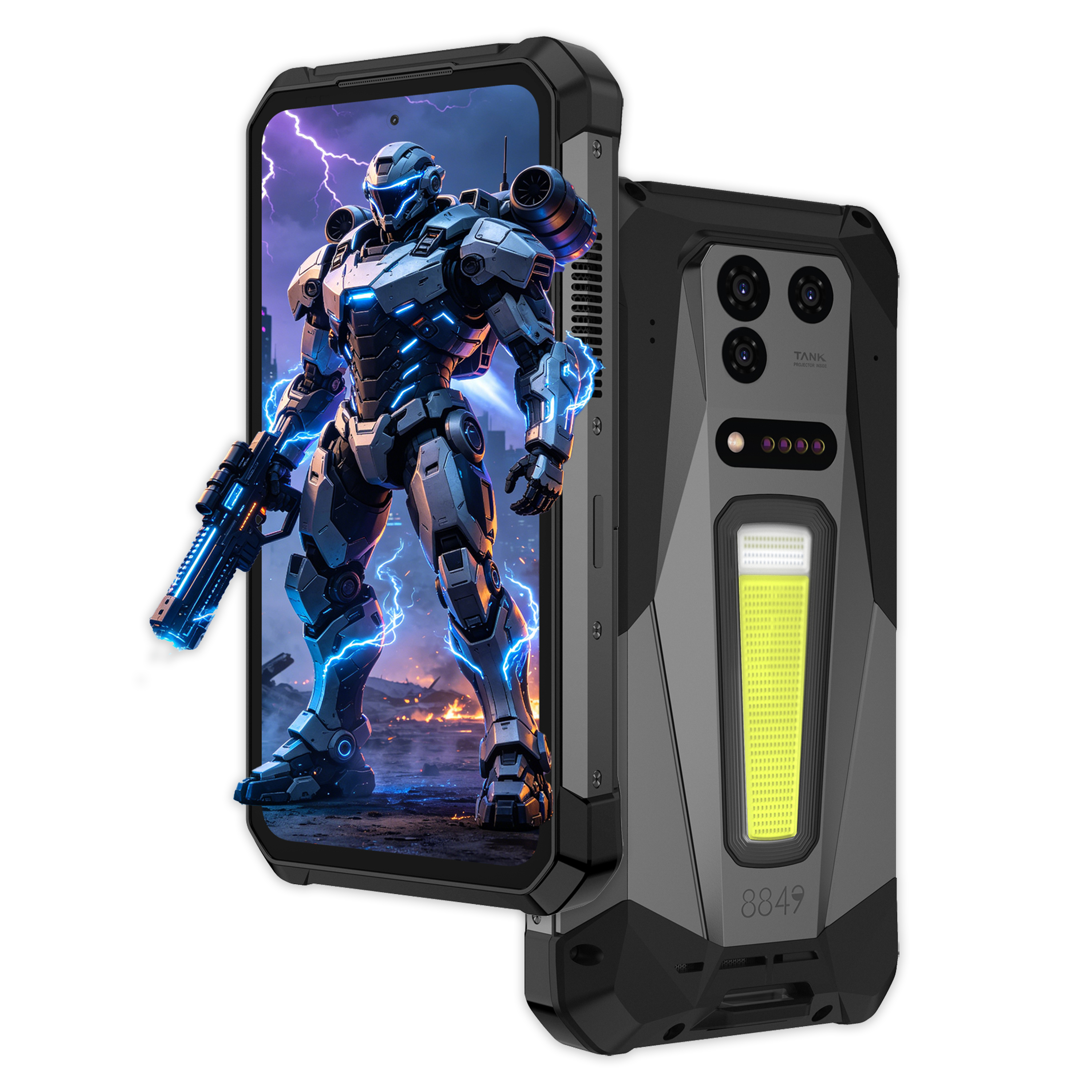

8849 TANK 5
Ultimate Flagship Rugged Smartphone. Period.
8849 TANK 5 is the ultimate flagship rugged phone powered by the MediaTek Dimensity 9400e 4nm flagship processor.
It brings major upgrades including eSIM for carrier switching, a 220-lumen 2K DLP projector, a 3K AMOLED display, and WiFi 7 ultra-fast connectivity.
It combines a 17600mAh battery with 120W fast charging and a 50MP quad-camera system. Designed for professionals, adventurers, and demanding users, it delivers a true flagship experience that no other projector rugged phone on the market can match.
Runs on Android 16 with 5 years of security updates.
MediaTek Dimensity 9400e – 4nm Flagship Chip
At the heart of the TANK 5 phone lies the Dimensity 9400e – a true flagship chip built on a 4nm process. Its octa-core CPU (one Cortex-X4 @3.4GHz, three X4 cores @2.85GHz, four A720 @2.0GHz) and the Immortalis-G720 MC12 GPU deliver desktop-level graphics and AI performance. With an AnTuTu score exceeding 2.3 million, it powers through 4K video editing, heavy multitasking, and demanding games with exceptional power efficiency.
220-lumen DLP projector with 2K resolution
TANK 5 debuts as the world's first 2K projector phone, featuring a 220-lumen, 2048×1080 high-resolution projector—sharp and clear even in indoor daylight or shaded outdoor environments, not just darkness. Enjoy up to 5 hours (High-Brightness) / 6 hours (Night Mode) of projection. A 97dB Smart PA speaker also delivers loud, clear sound for outdoor movies and presentations.
Auto Laser Autofocus & Keystone Correction
The TANK 5 features a built-in projector with laser autofocus (0.5–4.0m) for instant sharpening—no manual tweaking. ±45° keystone correction (vertical & horizontal) keeps images rectangular and distortion-free even when tilted. Perfect for tents, meeting rooms, or outdoor walls—quick setup, hassle-free.

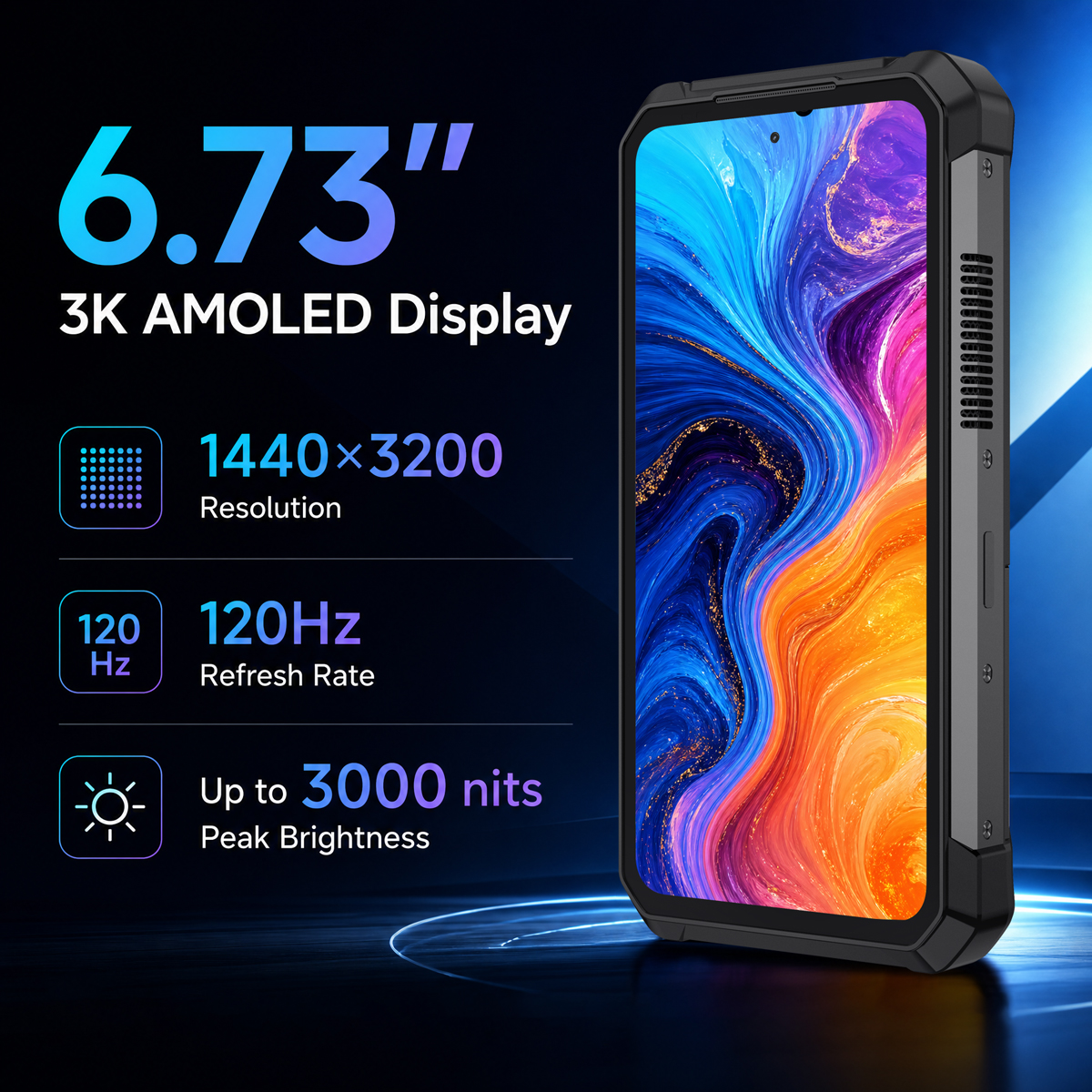

3K AMOLED Screen, up to 3000 nits brightness
TANK 5 rugged phone features a 6.73" AMOLED display with 1440×3200 resolution (521 PPI), 120Hz refresh rate, and 3000 nits peak brightness. The screen stays crisp and readable under direct sunlight—ideal for outdoor navigation, media, and fieldwork.

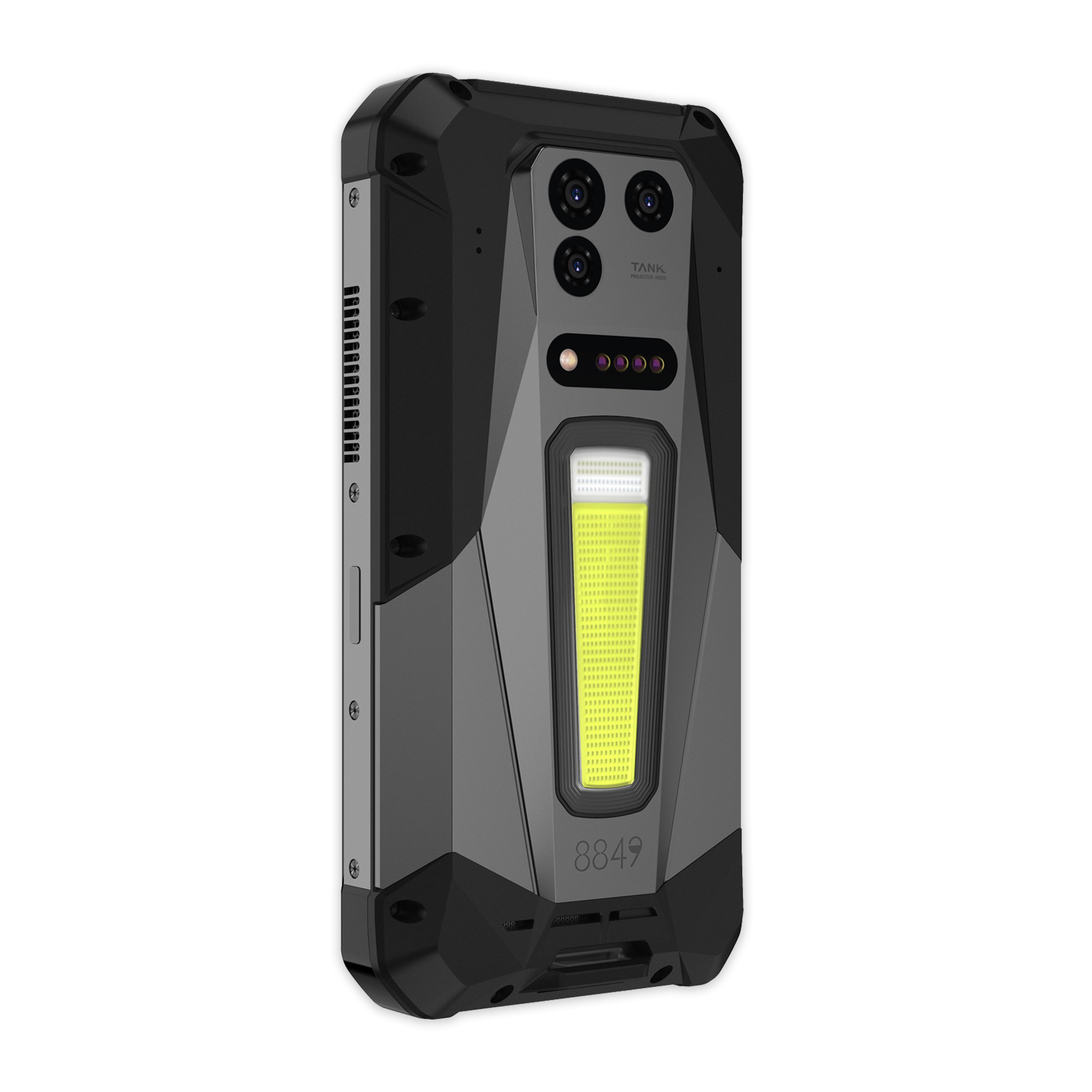

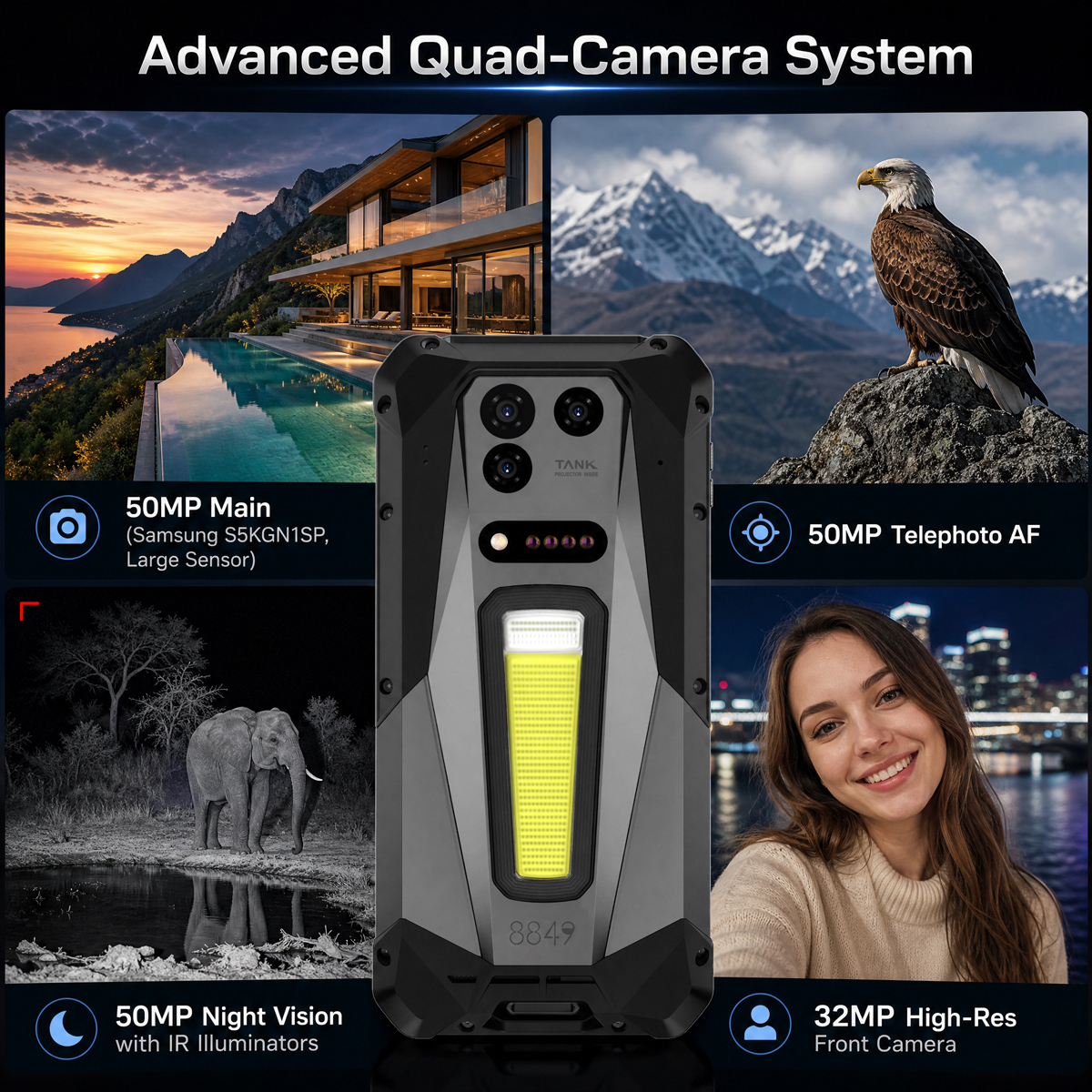

Quad-Camera System
50MP main
50MP telephoto
50MP night vision
32MP front
50MP Flagship Main Camera – Samsung S5KGN1SP Large Sensor
TANK 5 smartphone features a 50MP Samsung S5KGN1SP sensor (1/1.56")—flagship-level imaging for a rugged phone. The large sensor captures more light for brighter, cleaner low-light shots with less noise. Full-pixel autofocus locks on quickly, even in dynamic outdoor scenes.
50MP Telephoto & 32MP High-Res Front Camera
Capture distant subjects clearly with the 50MP telephoto camera (AF, up to 20x zoom). For selfies and video calls, the 32MP front camera delivers exceptional sharpness and detail. This versatile combination lets you shoot from wide-angle to telephoto, making it ideal for outdoor activities, work documentation, and content creation.
50MP Night Vision Camera with IR Illuminators
See in total darkness with the dedicated 50MP night vision camera (OV50D40 with AF). Four 940nm IR LEDs deliver up to 15m of night vision range, capturing clear images and videos – ideal for wildlife observation, security patrols, or camping. Auto-exposure ensures optimal low-light results.
4-Meter Laser Rangefinder
The TANK 5 integrates a 4-meter laser ranging module (originally for projector autofocus), doubling as a precise rangefinder. One press delivers instant measurements from 0.5m to 4m, supporting Distance, Area, Volume, and Pythagorean modes.
17,600mAh Massive Battery with 120W Fast Charging
Tank 5 packs a 17,600mAh battery – 3× larger than typical phones, flight-safe, and operable from –28°C to 56°C. It supports 120W fast charging (full in 90 min) and 25W reverse charging via USB 3.1, delivering 65h talk time and 6h projector use (Night Mode). Built for professionals, drivers, adventurers – anyone who never wants to run out of power.
eSIM & Dual SIM – Global Connectivity
TANK 5 projector phone supports eSIM for instant carrier switching – no physical SIM required. Use either two nano SIMs or one nano SIM + one eSIM. Perfect for travel, dual numbers, or separating work and personal lines.
GPS L1+L5 Dual-Band & Multi-GNSS
TANK 5 phone supports GPS (L1+L5 dual-band), GLONASS, Galileo, and Beidou. Dual-band GPS delivers accuracy within 1–2 meters, faster signal lock, and stable tracking even in dense forests or urban canyons. Whether hiking, driving, or working in remote areas, you'll always know your exact location.
USB-C (DP 1.4 Alt Mode) – Video Output to External Display
TANK 5 projector phone features a dedicated USB-C port with DP 1.4 Alt Mode (DP OUT) support. Plug directly into monitors, TVs, or projectors – no adapters needed. Mirror or extend your screen for presentations or watching movies on a larger display.
Wi-Fi 7 Premium Connectivity & Smart Key
Wi‑Fi 7 delivers ultra‑low latency, multi‑gigabit speeds, and interference‑free streaming; Bluetooth 5.4 ensures stable connections. Side fingerprint, NFC, and IR remote provide secure access, payments, and device control. Two programmable shortcut keys support single/double/long press to launch any app instantly.
1200-Lumen Camping Light & Warning Lights
TANK 5 phone packs a 1200-lumen camping light with high/medium/low modes, plus SOS and strobe—perfect for outdoor work, night repairs, or campsite setup. Red/blue warning lights with sound alert enhance safety for roadside or rescue situations. At 715g (25oz), it also doubles as a self-defense tool.
Rugged Protection
TANK 5 is IP68/IP69K certified — waterproof, dustproof, shockproof, and extreme-temperature resistant.
Practical Toolkit
Built-in Toolbox app puts essential tools at your fingertips: compass, camping light, bubble level, protractor, height measure, barometer, speedometer, magnifier, pedometer, underwater camera, noise meter, and alarm alerts.
